| Place of Origin: | CHINA |
| ब्रांड नाम: | SSL |
| प्रमाणन: | ISO9001&14001 |
| Model Number: | FH7-1000 |
| Minimum Order Quantity: | 1 |
|---|---|
| मूल्य: | Negotiation |
| Packaging Details: | crate box |
| Delivery Time: | 10-15 Days |
| Payment Terms: | T/T or L/C at sight |
| Supply Ability: | 1500 per month |
| Air velocity: | 0.5m/s | Noise dBA: | ≤ 60 |
|---|---|---|---|
| Blower: | Built-in centrifugal fan | Air outlet: | Φ290mm |
| Illumination: | ≥450Lux | Sash window: | 5mm double layer tempered glass |
| प्रमुखता से दिखाना: | exhaust fume hoods,chemistry fume hood |
||

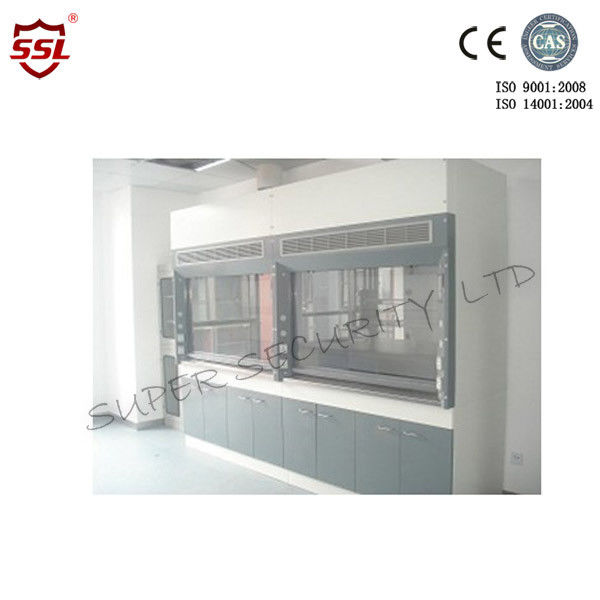

Laboratory Cold-roll Steel Chemical Fume Hood Φ290mm Air Outlet with Electrical Controlled Glass
|
Production Description |
|
|
Model |
FH7-1000 |
FH7-1200 |
FH7-1500 |
FH7-1800 |
|
Nominal size |
1 meters(3') |
1.2 meters (4') |
1.5 meters (5') |
1.8 meters(6') |
|
External Dimensions |
1000×750×2200 |
1200×800×2200 |
1500×800×2200 |
1800×800×2200 |
|
(W×D×H) |
||||
|
Internal Work Area Dimensions(W×D×H) |
820×620×750 |
1020×670×750 |
1320×670×750 |
1620×670×750 |
|
UV Lamp |
20W |
21W |
30W |
30W |
|
Power consumption |
150W |
150W |
235W |
235W |
|
Air velocity |
0.5m/s |
|||
|
Noise dBA |
≤ 60 |
|||
|
Blower |
Built-in centrifugal fan |
|||
|
Air outlet |
Φ290mm |
|||
|
Illumination |
≥450Lux |
|||
|
Sash window |
5mm double layer tempered glass |
|||
|
Max sash opening |
450mm |
|||
|
Electrical |
110-220V/50-60Hz |
|||
|
Base Cabinet |
620mm |
|||
|
Standard Accessory |
4m PVC Duct , base cabinet, Water tap*,1 Water sink*1, Gas tap*1, Electrical outlets*2, Fluorescent Light*1,UV Lamp*1 |
|||
|
Construction |
Main body : 1.2mm Cold-roll steel sheets with epoxy coating |
|||
|
Liner: Melamine board |
||||
|
Worktop: chemsurf chemical-resistant laminate |
||||
|
Optional Accessory |
Filter: HEPA filter/Carbon Filter |
|||
|
Net Weight(kg) |
200 |
230 |
280 |
330 |
